The BoxLevel Controll class contains the FSM for the BoxLevel. More...

#include <BoxLevelCtrl.h>

Collaboration diagram for BoxLevelCtrl:

Public Types
enum	Event { Event::PackageDetected, Event::NoPackageDetected, Event::CheckForPackage, Event::Error, Event::Resume, Event::NoEvent }
	Enum holds all possible events. More...

enum	State { State::emptyState, State::fullState, State::checking, State::errorState }
	Enum holds all possible states. More...

Public Member Functions
	BoxLevelCtrl ()
	Construct a new Box Level Ctrl object and initailize the currentState with emptyState. More...

void	loop ()
	Calls the do-function of the active state and hence generates Events. More...

void	loop (Event currentEvent)
	procceses the current Event and calls the do-function of the active state More...

const State	getcurrentState ()
	Get the current State. More...

Private Member Functions
void	process (Event e)
	changes the state of the FSM based on the event More...

void	entryAction_emptyState ()
	executes the entry action of the emptyState More...

BoxLevelCtrl::Event	doAction_emptyState ()
	executes the main action of the emptyState More...

void	exitAction_emptyState ()
	executes the exit action of the emptyState More...

void	entryAction_checking ()
	executes the entry action of the checking More...

BoxLevelCtrl::Event	doAction_checking ()
	executes the main action of the checking More...

void	exitAction_checking ()
	executes the exit action of the checking More...

void	entryAction_fullState ()
	executes the entry action of the fullState More...

BoxLevelCtrl::Event	doAction_fullState ()
	executes the main action of the fullState More...

void	exitAction_fullState ()
	executes the exit action of the fullState More...

void	entryAction_errorState ()
	entry action of the errorState More...

BoxLevelCtrl::Event	doAction_errorState ()
	main action of the errorState More...

void	exitAction_errorState ()
	exit action of the errorState More...

String	decodeState (State state)
	Decodes the State-Enum and returns a description. More...

String	decodeEvent (Event event)
	Decodes the Event-Enum and returns a description. More...

Private Attributes
State	lastStateBevorError
	holds the last state of the FSM so it's possible to resume after error More...

State	currentState
	holds the current state of the FSM More...

Event	currentEvent
	holds the current event of the FSM More...

Event(BoxLevelCtrl::*	doActionFPtr )(void) = nullptr
	Functionpointer to call the current states do-function. More...

SensorArray	pSensorArray = SensorArray(LB1, LB2, LB3, LOADINDICATOR_LED)
	SensorArray Object. More...

Detailed Description

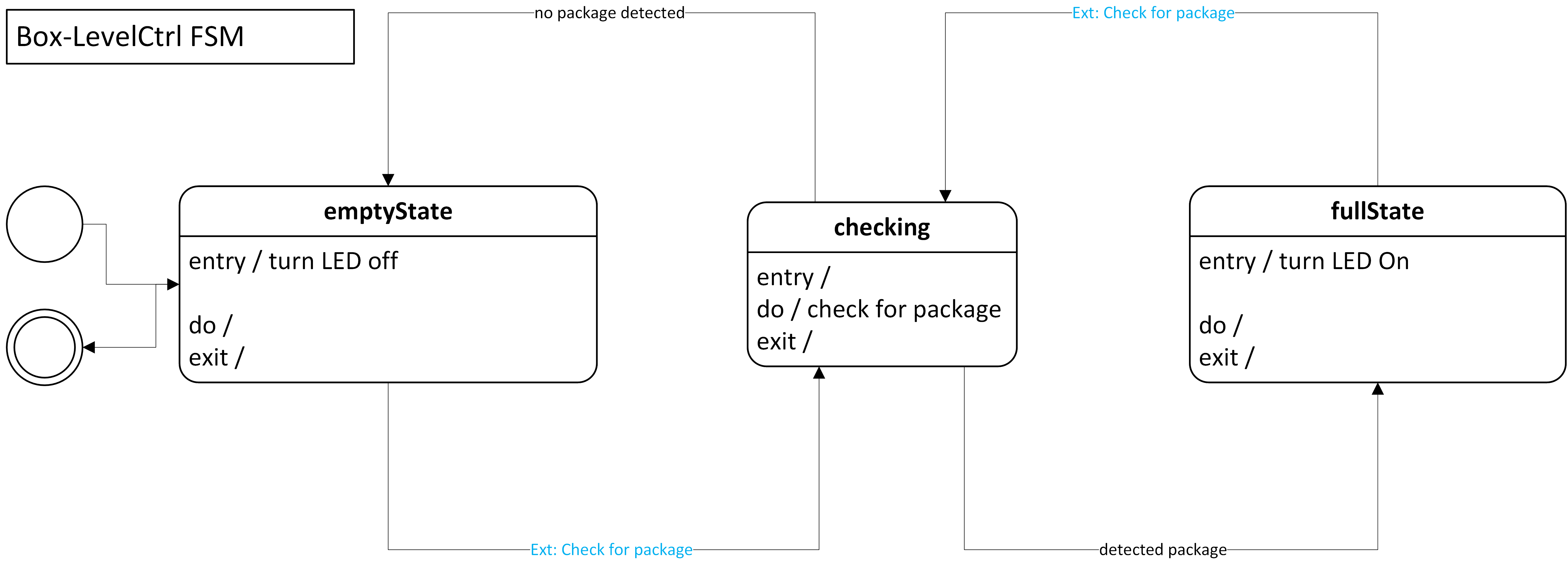

The BoxLevel Controll class contains the FSM for the BoxLevel.

Definition at line 28 of file BoxLevelCtrl.h.

Member Enumeration Documentation

◆ Event

enum BoxLevelCtrl::Event

strong

Enum holds all possible events.

Enumerator
PackageDetected	Package detected.
NoPackageDetected	No package detected.
CheckForPackage	Ext.: Check for package.
Error	Error occured.
Resume	Ext.:Resume after Error occured.
NoEvent	No event generated.

Definition at line 35 of file BoxLevelCtrl.h.

◆ State

enum BoxLevelCtrl::State

strong

Enum holds all possible states.

Enumerator
emptyState	Empty State.
fullState	Full State.
checking	check Boxlevel
errorState	Error-state.

Definition at line 47 of file BoxLevelCtrl.h.

Constructor & Destructor Documentation

◆ BoxLevelCtrl()

BoxLevelCtrl::BoxLevelCtrl ( )

Construct a new Box Level Ctrl object and initailize the currentState with emptyState.

Definition at line 16 of file BoxLevelCtrl.cpp.

Member Function Documentation

◆ loop() [1/2]

void BoxLevelCtrl::loop ( )

Calls the do-function of the active state and hence generates Events.

Definition at line 19 of file BoxLevelCtrl.cpp.

◆ loop() [2/2]

void BoxLevelCtrl::loop ( Event currentEvent )

procceses the current Event and calls the do-function of the active state

Parameters

currentEvent - Event

Definition at line 24 of file BoxLevelCtrl.cpp.

◆ getcurrentState()

const BoxLevelCtrl::State BoxLevelCtrl::getcurrentState ( )

Get the current State.

Returns: State - current State

Definition at line 30 of file BoxLevelCtrl.cpp.

◆ process()

void BoxLevelCtrl::process ( Event e )

private

changes the state of the FSM based on the event

Parameters

e - Event

Definition at line 34 of file BoxLevelCtrl.cpp.

◆ entryAction_emptyState()

void BoxLevelCtrl::entryAction_emptyState ( )

private

executes the entry action of the emptyState

Turns on the Loadindicator-LED

Definition at line 90 of file BoxLevelCtrl.cpp.

◆ doAction_emptyState()

BoxLevelCtrl::Event BoxLevelCtrl::doAction_emptyState ( )

private

executes the main action of the emptyState

Definition at line 97 of file BoxLevelCtrl.cpp.

◆ exitAction_emptyState()

void BoxLevelCtrl::exitAction_emptyState ( )

private

executes the exit action of the emptyState

Definition at line 103 of file BoxLevelCtrl.cpp.

◆ entryAction_checking()

void BoxLevelCtrl::entryAction_checking ( )

private

executes the entry action of the checking

Definition at line 108 of file BoxLevelCtrl.cpp.

◆ doAction_checking()

BoxLevelCtrl::Event BoxLevelCtrl::doAction_checking ( )

private

executes the main action of the checking

checks if the sensor has a package detected and generates the appropriate event

Returns: BoxLevelCtrl::Event - generated Event

Definition at line 114 of file BoxLevelCtrl.cpp.

◆ exitAction_checking()

void BoxLevelCtrl::exitAction_checking ( )

private

executes the exit action of the checking

Definition at line 124 of file BoxLevelCtrl.cpp.

◆ entryAction_fullState()

void BoxLevelCtrl::entryAction_fullState ( )

private

executes the entry action of the fullState

Turns off the Loadindicator-LED

Definition at line 129 of file BoxLevelCtrl.cpp.

◆ doAction_fullState()

BoxLevelCtrl::Event BoxLevelCtrl::doAction_fullState ( )

private

executes the main action of the fullState

Returns: BoxLevelCtrl::Event - generated Event

Definition at line 136 of file BoxLevelCtrl.cpp.

◆ exitAction_fullState()

void BoxLevelCtrl::exitAction_fullState ( )

private

executes the exit action of the fullState

Definition at line 143 of file BoxLevelCtrl.cpp.

◆ entryAction_errorState()

void BoxLevelCtrl::entryAction_errorState ( )

private

entry action of the errorState

Definition at line 148 of file BoxLevelCtrl.cpp.

◆ doAction_errorState()

BoxLevelCtrl::Event BoxLevelCtrl::doAction_errorState ( )

private

main action of the errorState

Returns: BoxLevelCtrl::Event - generated Event

Definition at line 155 of file BoxLevelCtrl.cpp.

◆ exitAction_errorState()

void BoxLevelCtrl::exitAction_errorState ( )

private

exit action of the errorState

Definition at line 162 of file BoxLevelCtrl.cpp.

◆ decodeState()

String BoxLevelCtrl::decodeState ( State state )

private

Decodes the State-Enum and returns a description.

Parameters

state - enum State

Returns: String - State as String

Definition at line 168 of file BoxLevelCtrl.cpp.

◆ decodeEvent()

String BoxLevelCtrl::decodeEvent ( Event event )

private

Decodes the Event-Enum and returns a description.

Parameters

event - enum Event

Returns: String - Event as String

Definition at line 188 of file BoxLevelCtrl.cpp.

Member Data Documentation

◆ lastStateBevorError

State BoxLevelCtrl::lastStateBevorError

private

holds the last state of the FSM so it's possible to resume after error

Definition at line 89 of file BoxLevelCtrl.h.

◆ currentState

State BoxLevelCtrl::currentState

private

holds the current state of the FSM

Definition at line 90 of file BoxLevelCtrl.h.

◆ currentEvent

Event BoxLevelCtrl::currentEvent

private

holds the current event of the FSM

Definition at line 91 of file BoxLevelCtrl.h.

◆ doActionFPtr

Event(BoxLevelCtrl::* BoxLevelCtrl::doActionFPtr) (void) = nullptr

private

Functionpointer to call the current states do-function.

https://stackoverflow.com/questions/1485983/calling-c-class-methods-via-a-function-pointer

Definition at line 98 of file BoxLevelCtrl.h.

◆ pSensorArray

SensorArray BoxLevelCtrl::pSensorArray = SensorArray(LB1, LB2, LB3, LOADINDICATOR_LED)

private

SensorArray Object.

Definition at line 100 of file BoxLevelCtrl.h.
